MTX300 0.6/1 kV HEPR Insulated, LSOH (SHF1) Sheathed Flame Retardant Power & Control Cables (Single Core)
Applications
These cables are used for fixed installations on ships and offshore units in all locations. These cables are flame retardant, low smoke & halogen free.
Standards
- DIN 89160/98
- IEC 60092-353
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

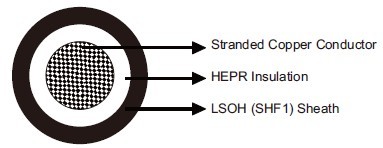

Construction
| Conductors | Class 2 stranded copper conductor. |
| Insulation | HEPR. |
| Outer Sheath | LSOH (SHF1). |
Core Identification
| Single core | Natural colour (beige) |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations | 6×OD (OD>25mm) |
| 4×OD (OD ≤25mm) | |
| Temperature Range | -20℃ ~ +75℃ |
Dimensions and Weight
| Part No. | Construction No. of cores×Cross section | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
| mm^2 | mm | mm | mm | kg/km | |
| MTX300-1G7Z1-R-1C4 | 1×4 | 0.7 | 1.2 | 6.5 | 80 |
| MTX300-1G7Z1-R-1C6 | 1×6 | 0.7 | 1.2 | 7.5 | 110 |
| MTX300-1G7Z1-R-1C10 | 1×10 | 0.7 | 1.2 | 8.5 | 150 |
| MTX300-1G7Z1-R-1C16 | 1×16 | 0.7 | 1.2 | 9.5 | 220 |
| MTX300-1G7Z1-R-1C25 | 1×25 | 0.9 | 1.2 | 11.0 | 320 |
| MTX300-1G7Z1-R-1C35 | 1×35 | 0.9 | 1.2 | 12.0 | 420 |
| MTX300-1G7Z1-R-1C50 | 1×50 | 1.0 | 1.3 | 13.5 | 560 |
| MTX300-1G7Z1-R-1C70 | 1×70 | 1.1 | 1.3 | 15.5 | 780 |
| MTX300-1G7Z1-R-1C95 | 1×95 | 1.1 | 1.4 | 17.8 | 1030 |
| MTX300-1G7Z1-R-1C120 | 1×120 | 1.2 | 1.4 | 19.3 | 1290 |
| MTX300-1G7Z1-R-1C150 | 1×150 | 1.4 | 1.5 | 21.3 | 1590 |
| MTX300-1G7Z1-R-1C185 | 1×185 | 1.6 | 1.5 | 23.5 | 1960 |
| MTX300-1G7Z1-R-1C240 | 1×240 | 1.7 | 1.6 | 26.5 | 2560 |
| MTX300-1G7Z1-R-1C300 | 1×300 | 1.8 | 1.7 | 29.5 | 3200 |
